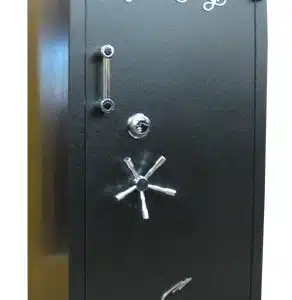

American Security CFX703620 TL-30×6

Original price was: $22,765.00.Current price is: $17,073.00.

76″ x 42″ x 29.25″, 31.75″ overall | 2 Hour 1850°F | 4,578 lbs. Minimum Advertised Pricing

Due To Extreme Weight Installation Is Limited

Product Details: American Security CFX703620 TL-30×6


American Security CFX703620 TL-30×6 Features:


  • Overall thickness of 6″ and is constructed with a 3″ defense barrier of outer and inner steel plates enclosing a unique interlocking heavy duty steel barrier, 12,000 PSI high strength concrete and a high density high strength ceramic matrix.
  • Defense barrier houses a combo of nuggets and steel fibers to protect against attacks with the most sophisticated equipment used by burglars today.
  • The Amvault CFX252016 TL-30×6 high security safes offer a massive solid steel hard plate covering the entire door.

Amsec CFX703620 TL-30×6 Safes Body:

  • The Amsec Amvault TL-30×6 has a total thickness of 3″ with a defense barrier of inner and outer steel plates enclosing a unique interlocking heavy duty steel barrier, 12,000 PSI high strength concrete and a high density high strength ceramic matrix..
  • A reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks.
  • A proprietary inner barrier protects against peeling attacks.
  • High strength adjustable shelves.

Amsec CFX703620 TL-30×6 Safes Fire Endurance:

  • Two hour, 350°F factory fire rating. Tested at temperatures up to 1850°F

Locking Mechanism:

  • Equipped with six to ten massive 1½” diameter chrome plated solid steel locking bolts.
  • Each bolt moves deep into the body’s protected bolt chambers.
  • Entire boltwork mechanism is also protected by a spring operated boltwork detent system.
  • Bolts stay in the retracted position when the door is opened and automatically engage when the door is closed.

American Security CFX703620 TL-30×6 Safes Three-Way Boltwork Option:

  • Safes can come with a three way active boltwork mechanism engaging the bolts horizontally and vertically into the body of the safe.


  • Equipped with a U.L. listed Group II key changeable combination lock. The lock is protected by a massive drill shattering hard plate and two additional spring- loaded devices.


  • Offers a vertical height adjustment and utilizes an oil impregnated bearing ensuring easy door operation.

Optional Auxiliary Key Lock:

  • U.L. listed, high security auxiliary key lock is also available on all AMVAULT safes. Lock has 2 keys and a escutcheon plate.
  • An additional spring loaded relock device protecting lock against punch attacks.
  • Optional Glass Relocking


  • Incorporated into the American Security CFX703620 TL-30×6 auxiliary key lock is an optional high security tempered glass relock mechanism with a remotely and randomly placed “cross locking” relocking bolt and thermal cords to protect against torch attacks.
  • In the event of an attack by tools, torches, or explosives, the glass will shatter activating the highly sophisticated relock mechanism.
  • Utilizing the glass relock can offer up to a total of six different relock devices offering the ultimate in high security protection.
Model No. CFX703620
H x W x D
70 x 36 x 20
H x W x D*
76 x 42 x 29¼
Cubic Feet 29.2
Wt. Lbs 4,578
Interior/Shelves 4
Door Swing A 18
B 44
C 47½

The American Security CFX703620 TL-30×6 high security safes are perfect for extreme security needs.

Need Help?

Talk to one of our safe specialists or read “What is the Best Safe For Me?“? West Coast Safes also offers professional and discreet delivery and installation of your new safe.

Additional information

Weight 4578 lbs


American Security Safes

Why Buy an American Security Safe?

As a result of 75+ Years of experience, American Security is without a doubt a household name you can trust to bring peace of mind. Whether it be home or office, Amsec is the gold standard for high security safes. Given that, despite building safes for businesses such as the TL rated lines, American Security also offers an extensive line of gun safes.

Amsec offers several different types of safes, including:

Tending to your high-value items, American Security provides security solutions that keep your valuables protected. Amsec offers residential safes, business safes, cash safes, jewelry safes and gun safes. Their security solutions are tailored to meet your specific security needs in the long run!


American Security offers a lifetime warranty on all safes that are 55” high or taller.

American Security warranty covers:

  • Overall damage to the Amsec gun safe caused by burglary will be repaired or the safe replaced at no cost.
Attempted Burglaries:
  • After a drill, punch or pry attack, even if the safe is not opened, it will be repaired or replaced free of charge.
Damage from a House Fire:
  • In the event that your safe is damaged by a fire at your home, American Security will repair or replace it free of charge.
  • At no cost to you, Amsec gun safe will either repair your damaged gun safe or replace it with a current production model of comparable value. (1)
(1) In order to file a claim, you must be the original owner of your safe. Within 30 days of the burglary/fire incident, you must properly file a police report documenting the incident. A copy of the police report must be submitted to American Security with your warranty claim. Need Help? Feel free to contact one of our safe specialists without reservation, or read “What is the Best Safe For Me?“ West Coast Safes also offers professional and discreet delivery and installation of your new safe.
